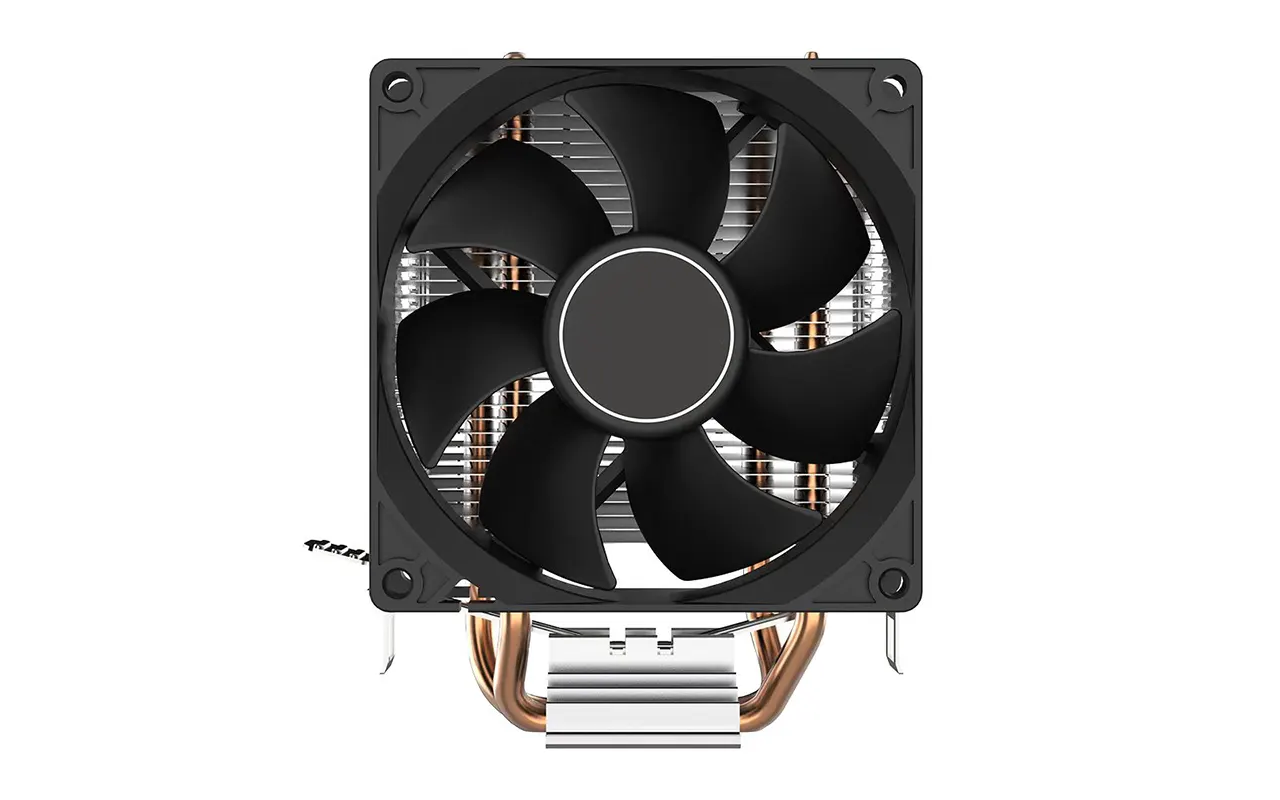

CPU Heat Sink Fan Direction: A Comprehensive Guide

CPU Heat Sink Fan Direction: A Comprehensive Guide

Proper fan orientation is one of the most overlooked aspects of PC building, yet it can make a significant difference in your system's thermal performance. Installing a CPU heat sink with the fan facing the wrong direction can lead to poor airflow, increased temperatures, and reduced system stability. In this comprehensive guide, we'll explore everything you need to know about CPU heat sink fan direction.

Why Fan Direction Matters

The direction in which your CPU heat sink fan blows or pulls air directly affects how heat is removed from your system. A correctly oriented fan creates efficient airflow that works in harmony with your case's ventilation system, while an incorrectly oriented fan can create turbulent airflow patterns that trap heat inside the case.

The Physics of Airflow

Heat sinks work by increasing the surface area available for heat dissipation. The fan attached to the heat sink enhances this process by moving air across the fins, carrying heat away. The direction of airflow determines whether the fan is:

• Pushing air through the heat sink (blowing towards the fins)
• Pulling air through the heat sink (sucking air away from the fins)

Both methods work, but they have different characteristics and work better in different scenarios.

Standard Fan Orientations

Most CPU heat sinks come with fans that can be mounted in different orientations. Here are the common configurations:

1. Push Configuration (Blowing Into Heat Sink)

In a push configuration, the fan blows air directly into the heat sink fins. This is the most common setup because:

• Benefits:

  • Air moves more efficiently through tight fin spacing
  • Better static pressure for dense heat sink designs
  • Cooler air from outside hits the fins first
  • Generally quieter operation

• Drawbacks:

  • Warmer air is expelled behind the heat sink, potentially heating nearby components
  • Can create dead spots in airflow if not properly managed

2. Pull Configuration (Sucking Air Away)

In a pull configuration, the fan sucks air through the heat sink fins. This approach:

• Benefits:

  • Warmer air is directed away from the motherboard
  • Easier to clean the heat sink (dust accumulates on the fins, not the fan)
  • Better for cases with limited space

• Drawbacks:

  • Typically less efficient with dense fin arrays
  • Airflow can be more turbulent
  • May be slightly noisier

3. Push-Pull Configuration (Dual Fans)

For maximum cooling performance, many enthusiasts use two fans in a push-pull configuration:

• One fan pushes air into the heat sink

• A second fan pulls air out from the other side

• Benefits:

  • Highest airflow and cooling capacity
  • Can maintain performance at lower fan speeds
  • Best for high-performance systems and overclocking

• Considerations:

  • Higher cost (two fans)
  • Takes more space
  • Requires more fan headers on motherboard

Determining Your Case Airflow Direction

Before installing your CPU heat sink fan, you need to understand your case's airflow pattern. Most modern cases follow one of these patterns:

Front-to-Back Airflow

• Air intake: Front of case
• Air exhaust: Rear of case
• Best fan direction: CPU fan should push air toward the rear exhaust fan

Bottom-to-Top Airflow

• Air intake: Front and bottom
• Air exhaust: Top of case
• Best fan direction: CPU fan should push air upward toward top exhaust

Balanced Airflow (Most Common)

• Multiple intake and exhaust points
• Best fan direction: Coordinate with case fans to create a smooth flow

Step-by-Step Installation Guide

Step 1: Identify Fan Direction

Most fans have arrows on the housing indicating airflow direction:

• Arrow → Fan blades: Indicates airflow direction
• Frame arrows: May indicate rotation direction

If no arrows are present, you can determine direction by:

1. Looking at the fan blades curve (convex side faces airflow direction)
2. Testing with a piece of paper or your hand
3. Checking the manufacturer's documentation

Step 2: Position Heat Sink on CPU

1. Apply thermal paste to CPU (pea-sized amount in center)
2. Align heat sink mounting brackets with motherboard holes
3. Secure heat sink with mounting screws

Step 3: Mount Fan in Correct Direction

1. Determine your desired orientation (push or pull)
2. Attach fan to heat sink using provided clips or screws
3. Ensure fan cable can reach motherboard fan header
4. Verify fan doesn't interfere with RAM modules or other components

Step 4: Connect to Motherboard

1. Locate CPU_FAN header on motherboard
2. Connect fan's 4-pin or 3-pin connector
3. Ensure connection is secure (should click into place)

Common Mistakes to Avoid

Mistake 1: Fan Blowing Against Case Airflow

Problem: Fan pushes air in opposite direction of case exhaust fans Solution: Ensure fan direction aligns with case's natural airflow pattern

Mistake 2: Incorrect Thermal Paste Application

Problem: Too much or too little thermal paste Solution: Use pea-sized amount, spread evenly or let it spread naturally under pressure

Mistake 3: Fan Blocked by Other Components

Problem: RAM modules or VRM heatsinks blocking airflow Solution: Choose appropriate heat sink size, ensure clearance before purchasing

Mistake 4: Not Checking Fan Speed Settings

Problem: Fan running at incorrect speeds Solution: Configure fan curves in BIOS or use software like SpeedFan, MSI Afterburner

Optimizing Fan Performance

Fan Curves

Modern motherboards allow you to create custom fan curves that adjust fan speed based on CPU temperature:

• Silent Mode: Fan stays at low RPM until high temperatures
• Balanced Mode: Gradual speed increase with temperature
• Performance Mode: Higher base speed, aggressive ramp-up

Static Pressure vs. Airflow Fans

• Static Pressure Fans: Better for heat sinks with dense fins (high fin count, tight spacing)
• Airflow Fans: Better for open configurations or case fans

Regular Maintenance

• Clean heat sink fins every 3-6 months
• Remove dust from fan blades
• Check thermal paste condition annually
• Monitor temperatures regularly

Real-World Performance Impact

Temperature Differences

Proper fan orientation can result in:

• 5-10°C lower CPU temperatures under load
• 3-5°C lower overall case temperatures
• Reduced thermal throttling in demanding applications
• Extended component lifespan

Noise Levels

Correct orientation typically:

• Reduces fan speed requirements (cooler running = less need for high RPM)
• Minimizes turbulence and associated noise
• Creates smoother airflow patterns

Special Considerations

Small Form Factor (SFF) Cases

In compact cases, airflow optimization is even more critical:

• May need to use pull configuration to avoid recirculating hot air
• Consider low-profile heat sinks
• Ensure intake and exhaust fans are properly balanced

High-Performance Builds

For overclocked systems or workstations:

• Push-pull configuration recommended
• Higher-RPM fans may be necessary
• Monitor temperatures closely during stress testing

Multi-GPU Setups

With multiple graphics cards:

• Coordinate CPU fan direction with GPU cooling
• Ensure overall case airflow isn't compromised
• Consider water cooling for extreme configurations

Conclusion

The direction of your CPU heat sink fan might seem like a minor detail, but it significantly impacts your system's cooling efficiency. By understanding airflow principles, your case's ventilation pattern, and proper installation techniques, you can optimize thermal performance and ensure your CPU runs cool and stable.

Remember:

• Align fan direction with case airflow
• Choose push or pull based on your setup
• Regular maintenance keeps performance optimal
• Monitor temperatures after installation

Taking the time to get fan direction right during initial build will pay dividends in system stability, performance, and longevity. Your CPU will thank you with reliable, cool operation for years to come.
